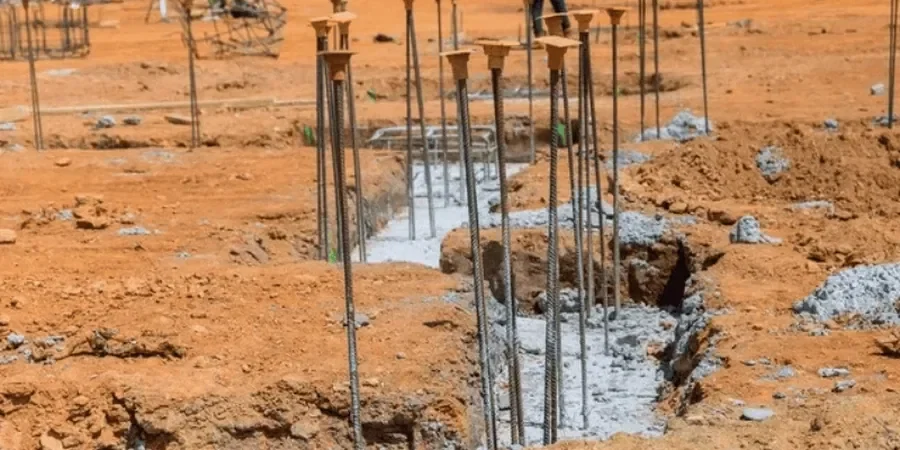

The sandstone ridge that runs beneath Wolverhampton gives the city a deceptive surface. Above the bedrock, glacial till and pockets of soft alluvium along the Smestow Brook create abrupt transitions in bearing capacity—sometimes within a single site boundary. A desk study alone will not catch these variations. Our pile foundation design workflow starts with rotary drilling through the drift into the Bromsgrove Sandstone, recovering cores that show exactly where competent rock begins. This is not uniform across the city: sites near the western edge of the Black Country coalfield can encounter old mine workings, and that changes the entire piling strategy. When the borehole logs show weathered mudstone interbedded with sandstone, we specify socketed piles rather than end-bearing, because the CPT test data from a nearby site often confirms that the upper rock is too fractured to rely on point resistance alone. We also run laboratory strength tests on sandstone samples to set the allowable end-bearing pressure, referencing BS EN 1997-1:2004 for the geotechnical limit states that govern the final pile length and diameter.
Socketing piles into the Bromsgrove Sandstone requires knowing the weathering depth: we measure it from core recovery and seismic velocity, not from a generic table.
Method and coverage
Regional considerations
At 52.58 degrees north and sitting on the edge of the Birmingham-Wolverhampton coalfield, this city inherits a specific set of subsurface risks. The Coal Authority records more than 300 mine entries within the Wolverhampton metropolitan area, and shallow pillar-and-stall workings from the 19th century still collapse under the weight of modern construction. We treat every site east of the A449 as potentially undermined until the rotary boreholes prove otherwise. If the driller hits a void, we switch to a grouting programme before any pile is cast—filling the cavity under controlled pressure and verifying the treatment with additional cores. Another risk is differential settlement across the boundary between till and sandstone; we model these transitions explicitly in the pile group analysis, using spring stiffness values derived from the SPT drilling blow counts taken at each borehole location. Ignoring this transition can tilt a slab-on-grade even when the piles themselves are structurally sound.
Standards that apply
BS EN 1997-1:2004 (Eurocode 7: Geotechnical design), BS 8004:2015 (Code of practice for foundations), BS 5930:2015 (Code of practice for ground investigations), ICE Specification for Piling and Embedded Retaining Walls (3rd edition)
Complementary services
Rotary drilling and core logging
Cored boreholes into the Bromsgrove Sandstone with RQD measurement, fracture logging, and point-load testing on recovered rock cores to support socket design.
Pile capacity analysis
Static pile capacity calculations for shaft friction and end bearing, using soil parameters from site-specific triaxial and SPT data, reported with geotechnical limit states per Eurocode 7.
Mine working assessment and grouting
Coal Authority record review, rotary drilling through suspected workings, and low-pressure grouting to stabilise voids before pile installation.
Typical parameters
Top questions
How deep do piles typically need to go in Wolverhampton to reach competent sandstone?
It varies by postcode. Near the city centre and along the sandstone ridge, competent Bromsgrove Sandstone often appears between 6 and 12 metres below ground level. In the Smestow valley and south of Penn, weathering can extend to 15 metres or more. We determine the exact socket depth from rotary core recovery and RQD values, not from a pre-set depth rule.
What does a pile foundation design package cost for a residential extension in Wolverhampton?
For a typical residential project requiring two to three boreholes, laboratory testing, and a pile design report, the cost ranges from £1.170 to £5.450 depending on access constraints, depth to rock, and whether mine working investigations are required by the building control authority.
Can you design piles on a site with Coal Authority mine entry records?
Yes, and we do it regularly. We start with a Coal Authority mining report, then drill through the suspected workings to confirm their condition. If voids or collapsed zones are found, we design a grouting programme and specify the pile installation sequence so that the treated ground can support the pile loads safely.
